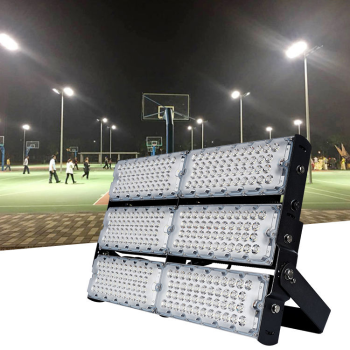

Ip67 Tennis Court Stadium Outdoor Waterproof Led Flood Light
- group name
- Flood Light
- Min Order
- 1 piece
- brand name
- Maxfanlight
- model
- MX-S07
- Nearest port for product export
- Yantian, Hangpu, Nansha, Shekou
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, FCA, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union
- update time
- Sat, 10 May 2025 04:34:14 GMT
Paramtents
Product Name LED Stadium Flood Lights
Beam Angle(°) 8°/20°/40°/60°/90°/140°
Input Voltage(V) AC100-277V
Lamp Luminous Efficiency(lm/w) 150
Usage Parking Lot,Stadium,Park,Outdoor,ect.
Working Temperature(℃) -20 - 50
Color Rendering Index(Ra) 80
Warranty 2 years
Protection Grade IP66
Lifespan (hours) 50000 hours
Wattage 100W,200W,300W,400W,500W,600W,800W,1000W
Lamp Bead Amount 688/2376/2604
Light Source SMD3030/3535/5050
LED Chip 48/96/144/192/240/288/384/480 PCS
Packging & Delivery
-
Min Order1 piece
Briefing
Ip67 Tennis Court Stadium Outdoor Waterproof Led Flood Light
Detailed
Ip67 Tennis Court Stadium Outdoor Waterproof 100w 200w 300w 400w 500w 600w 800w 1000w Led Flood Light
| Power | 100W | 200W | 300W | 400W | 500W | 600W | 800W | 1000W |
Lamp Bead | 48 | 96 | 144 | 192 | 240 | 288 | 384 | 480 |
Dimension
(mm) | 210*350*65 | 315*350*73 | 450*350*73 | 580*350*73 | 710*350*73 | 450*620*730 | 580*620*730 | 710*620*730 |
Weight (kg) | 3.5 | 4.5 | 5.6 | 6.5 | 7.5 | 14.2 | 16 | 18 |
| Ra(>) | 70 | |||||||
Warranty | 5 years | |||||||
Beam angle | 8°/20°/40°/60°/90°/140° | |||||||
Rated life | ≥50000hrs | |||||||
LED Chip | 3030/3535/5050 | |||||||
1. Cut light eaves to prevent light scattering to the sky and eliminate light waste
2. Optical PC lens, no yellowing material.
3.Silicone waterproof sealing strip. UV resistant material, reliable without failure
4.3030/3535/5050 Patch light source design
5. High thermal conductivity aluminum substrate, fast heat dissipation, reduce light decline
6.Laser locator.
7.Aluminum radiator, efficiency up to 96W/M.K
8. Cooling respirator design can avoid sealing failure caused by thermal expansion and cold contraction9. External waterproof electricity from the special iron shell, no contact with the lamp body, thermoelec.tric separation, longer life.
10.Strong support, more firm installation.
High thermal conductivity material ACD12 die-cast aluminum radiator with efficiency up to 96w/M.K
Optical lens
Various light distributionangles are available,use lowglare lens.
Thermal design
Designed by the principle ofstrong air convection, the chipspiral heat dissipation perfor-mance is excellent, and theservice life of the light source is guaranteed
Adjustable angle
Thickened 360 degreeadjustment bracket
